PipeScope S – Commercial Sewer & Stormwater Crawler

150–2000 mm Pipes • Up to 150 m Runs • Custom WSA-Compliant Software

Optimized for high-volume commercial inspections in sewer, stormwater and drainage systems – with custom software for full WSA 05-2020 v4.1 reporting compliance.

Fully Aligned with WSA 05-2020 Version 4.1 Reporting Standards
Request Specs & Pricing View Gallery

PipeScope S Key Specifications & Features

Precision for Commercial & High-Volume Workflows

The PipeScope S excels in frequent, precise inspections of commercial sewer lines, stormwater drains, and smaller municipal networks where reliability and speed are essential.

  • Camera: Full HD 1920×1080 Resolution

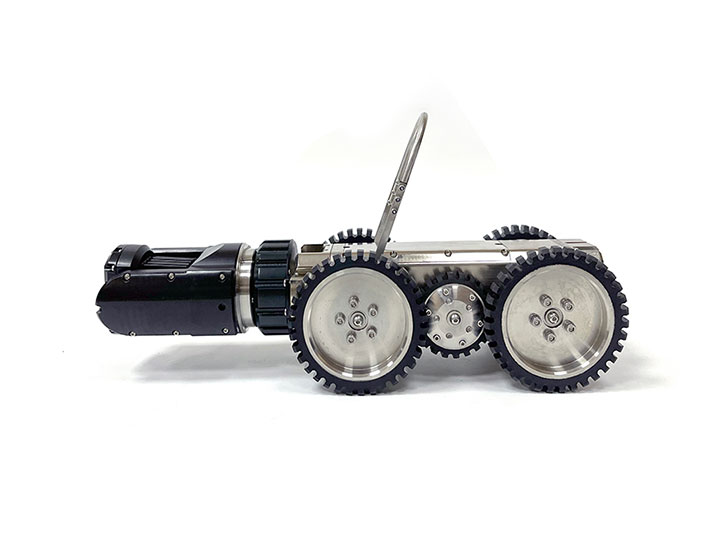

  • Movement: 360° Rotation + 220° Tilt
  • Control: Pan-Tilt Camera Control
  • Cable Length: Up to 150 m
  • Pipe Range: 150–2000 mm diameter

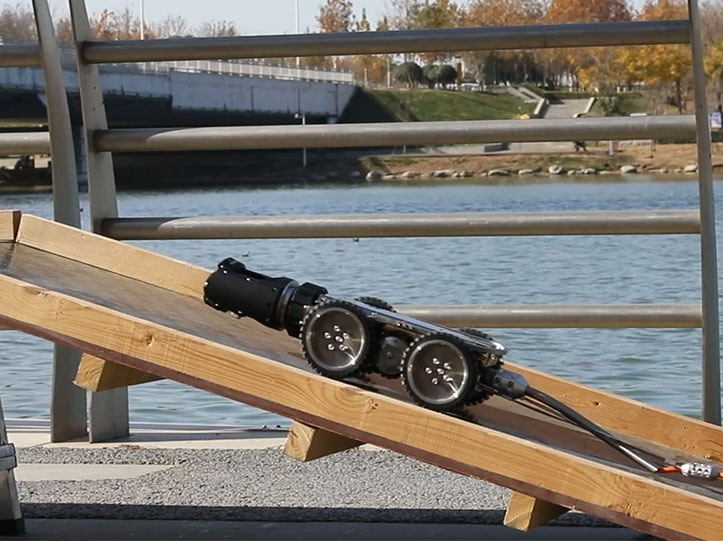

  • Chassis: Heavy-Duty Traction System

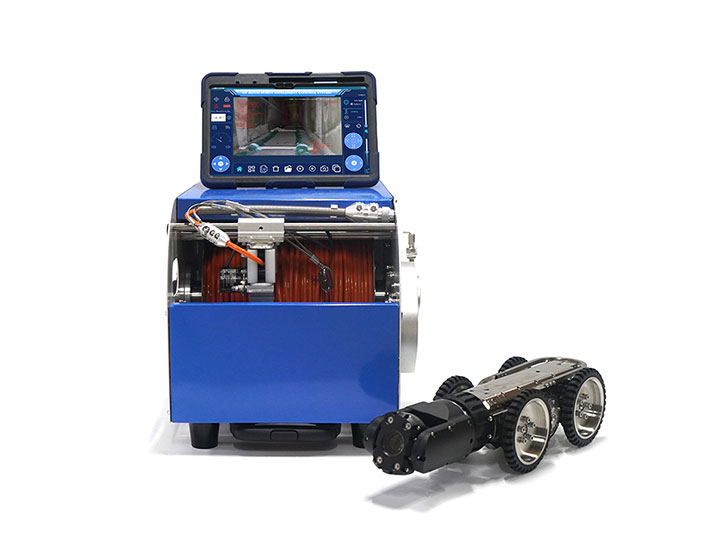

PipeScope S commercial sewer crawler system

PipeScope S – 150–2000 mm • Up to 150 m runs

Detailed Technical Specifications

FeatureSpecification
Camera ResolutionFull HD 1920×1080
Pan / Tilt360° Rotation + 220° Tilt
Camera ControlPan-Tilt with Remote Operation
Chassis DriveHeavy-Duty Traction System
Max Cable LengthUp to 150 m
Pipe Diameter Range150–2000 mm
Waterproof RatingIP68 (Crawler & Camera Head)

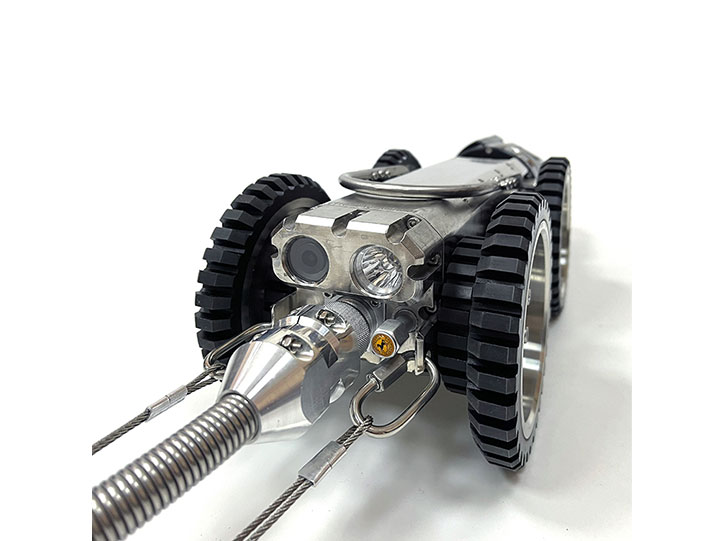

LightingAdjustable High-Intensity LED
Additional FeaturesReal-Time Video & Photo Capture, Obstacle Navigation

Custom Control & Reporting Software – Built for Australian Compliance

Tailored for WSA 05-2020 v4.1 Workflows

Our custom software makes PipeScope S a complete compliance-ready tool — designed specifically for Australian standards, streamlining high-volume commercial inspections.

  • Real-Time Operation: Intuitive control of crawler movement, camera pan/tilt, zoom/focus, lighting, and speed.

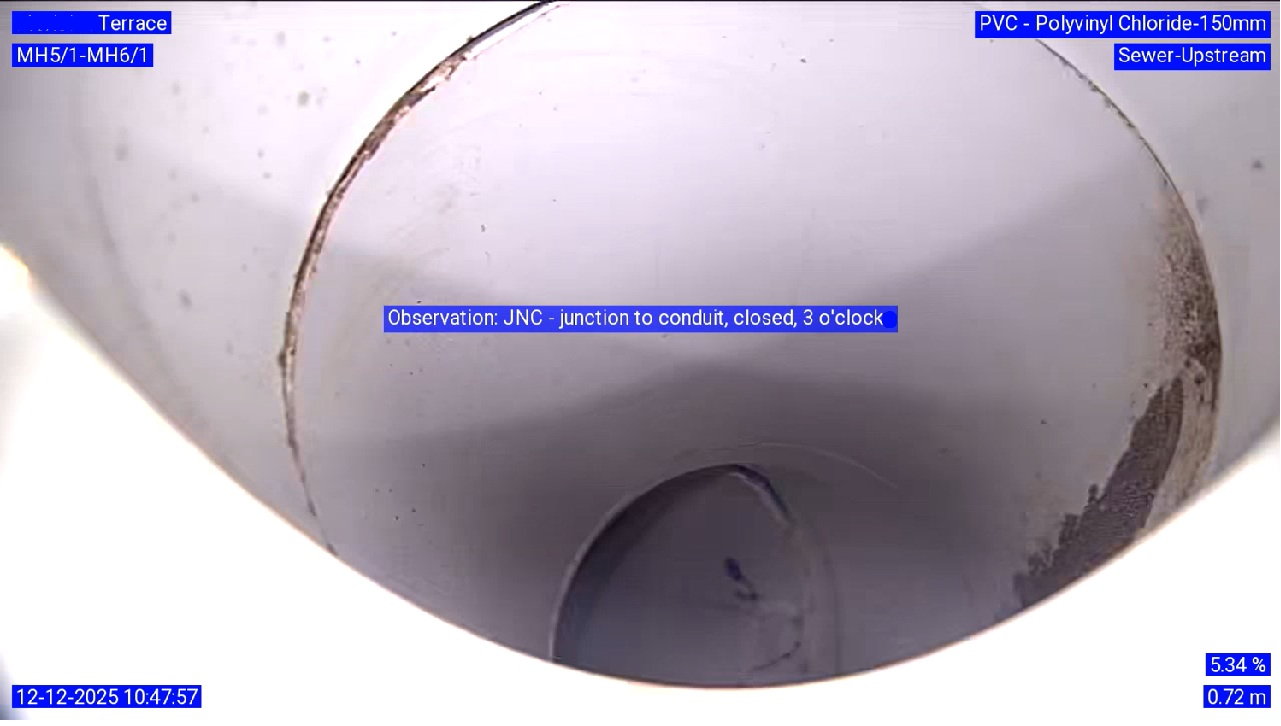

  • Defect Logging: Quick tagging of common issues (cracks, blockages, roots, infiltration) with precise location via cable meter and sensors.
  • WSA-Compliant Reporting: Auto-generates structured reports meeting WSA 05-2020 Version 4.1 requirements — defect codes, severity, photos/videos, summaries.
  • Professional Outputs: PDF exports, editable formats, and easy integration for council/utility submissions and asset records.
  • Field-Optimized: High-brightness support, shortcuts, annotations, and voice notes for efficient on-site workflows.

Result: Quicker turnarounds, fewer rejected reports, and accurate data for commercial drain and sewer management.

PipeScope custom software interface – WSA compliant reporting for commercial inspections

Custom software dashboard – Real-time control and automatic WSA report generation

Request Software Overview or Demo

Ideal Applications for PipeScope S

Commercial sewer lines • Stormwater drainage networks • Branch and lateral pipes • High-frequency municipal and contractor inspections

Explore All Applications →

Australia-Wide Supply & Technical Support

National delivery, remote technical help, spare parts, software updates, and setup guidance for PipeScope S systems across all states and territories.

Request PipeScope S Specifications, Pricing or Software Details

Contact a technical advisor to match PipeScope S to your commercial inspection needs, pipe sizes, and compliance goals.
