PipeScope L – Long-Range Crawler System

200–3500 mm Pipes • Up to 300 m Runs • Custom WSA-Compliant Software

Engineered for extended municipal, sewer, stormwater and industrial inspections across Australia – with custom software for full WSA 05-2020 v4.1 reporting compliance.

Fully Aligned with WSA 05-2020 Version 4.1 Reporting Standards
Request Specs & Pricing View Gallery

PipeScope L Key Specifications & Features

Built for Long-Range & Large-Diameter Demands

The PipeScope L is designed for high-stakes civil, municipal and industrial environments — delivering reliable performance over long distances and in large pipes.

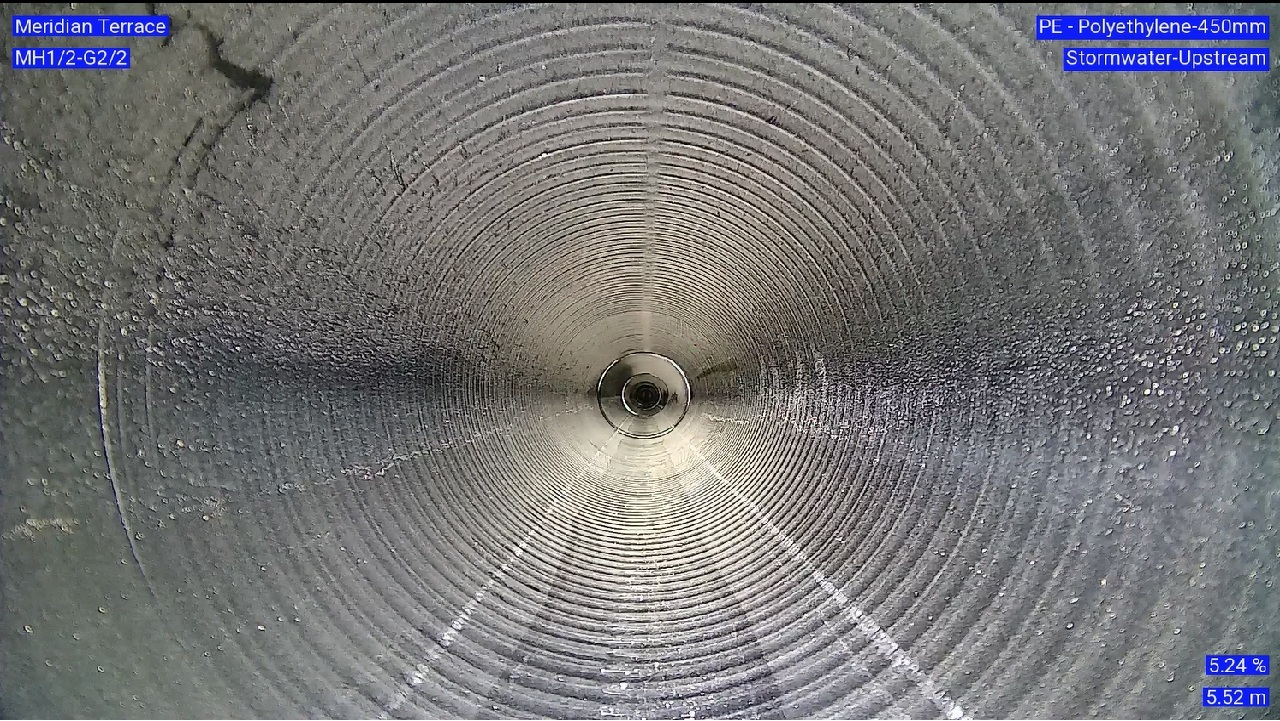

  • Camera: 4MP Industrial Sensor (2560×1600 resolution)
  • Zoom: 10× Optical Zoom

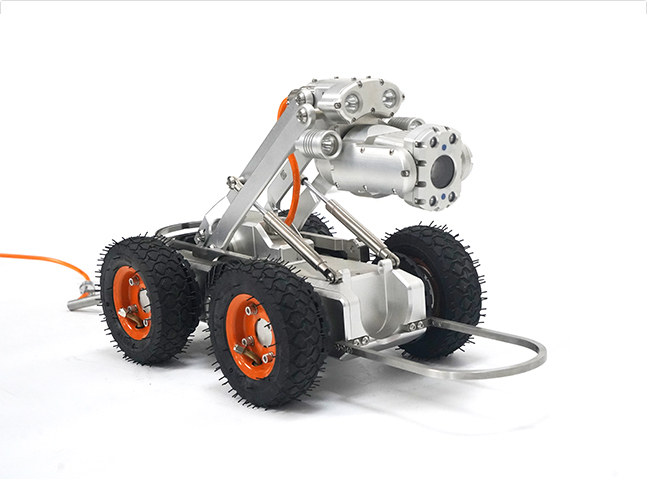

  • Movement: 360° Endless Rotation + 220° Tilt
  • Chassis: Electric Lifting Crawler with Heavy-Duty Traction
  • Sensors: Integrated Inclinometer for precise defect location
  • Cable Length: Up to 300 m

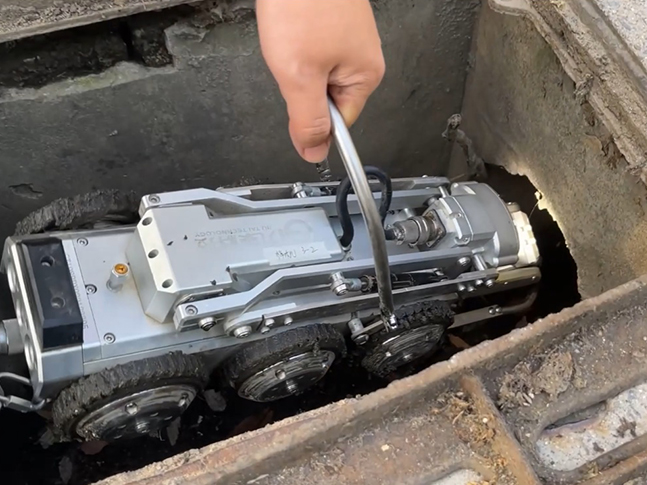

  • Pipe Range: 200–3500 mm diameter
PipeScope L long-range crawler system in large pipe

PipeScope L – 200–3500 mm • Up to 300 m runs

Detailed Technical Specifications

FeatureSpecification
Camera Resolution4MP Industrial Sensor (2560×1600)
Optical Zoom10×
Pan / Tilt360° Endless Rotation + 220° Tilt
Chassis DriveElectric Lifting Crawler, 6-Wheel Drive with Strong Traction
SensorsIntegrated Inclinometer
Max Cable LengthUp to 300 m
Pipe Diameter Range200–3500 mm

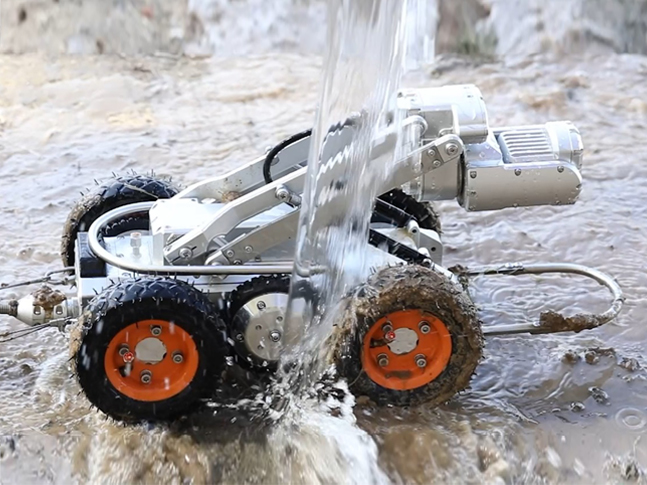

Waterproof RatingIP68 (Crawler & Camera Head)
LightingAdjustable High-Intensity LED
Additional FeaturesObstacle Climbing Capability, Real-Time Video & Photo Capture

Custom Control & Reporting Software – Built for Australian Compliance

Tailored for WSA 05-2020 v4.1 Workflows

Our custom software transforms the PipeScope L into a complete compliance solution — going far beyond basic recording tools to meet strict Australian council and utility standards.

  • Real-Time Operation: Full crawler and camera control (zoom, tilt, focus, speed, lighting) via intuitive interface.
  • Defect Identification: Instant tagging of defects (cracks, roots, infiltration, offsets, corrosion) with accurate location data from inclinometer and cable meter.
  • WSA-Compliant Reporting: Automatically generates structured reports with defect codes, severity grades, photos/videos, and summaries per WSA 05-2020 Version 4.1.
  • Professional Outputs: PDF exports, editable templates, compatibility with asset management systems, and easy council submission.
  • Field-Friendly: Supports high-brightness screens, keyboard shortcuts, annotations, and voice notes for efficient on-site use.

Result: Faster inspections, reduced rework, fewer rejected submissions, and reliable data for infrastructure asset management.

PipeScope custom software interface – WSA compliant reporting dashboard

Custom software – Real-time control and automatic WSA-compliant report generation

Request Software Overview or Demo

Ideal Applications for PipeScope L

Municipal sewer trunk lines • Large stormwater mains & culverts • Industrial process pipelines • Extended utility and mining infrastructure inspections

Explore All Applications →

Australia-Wide Supply & Technical Support

National freight delivery, remote technical assistance, spare parts availability, software updates, and on-site configuration support for PipeScope L systems anywhere in Australia.

Request PipeScope L Specifications, Pricing or Software Details

Speak with a technical advisor to confirm the right configuration for your pipe sizes, run lengths and compliance requirements.
